Description

SA-382VMB

Professional Vertical Compound Autoclave for Biological Experiment in Laboratory

VMB series combines two fields of sterilization and biological culture. It is widely used such as solid and liquid sterilization, agar, dissolution, and temperature retention functions. Easy to use, easy to maintain, improves the quality of laboratory work, and reduces the workload and management costs of researchers. The “Economic”, “Standard” and “Advanced” types are available and are designed for a wide range of laboratory applications for sterilization of solid or liquid.

It is applied to the control of instruments, liquids, media sterilization, biolysis, and strain culture, which can improve the accuracy of biological research and make the analysis of various experimental judgments more accurate.

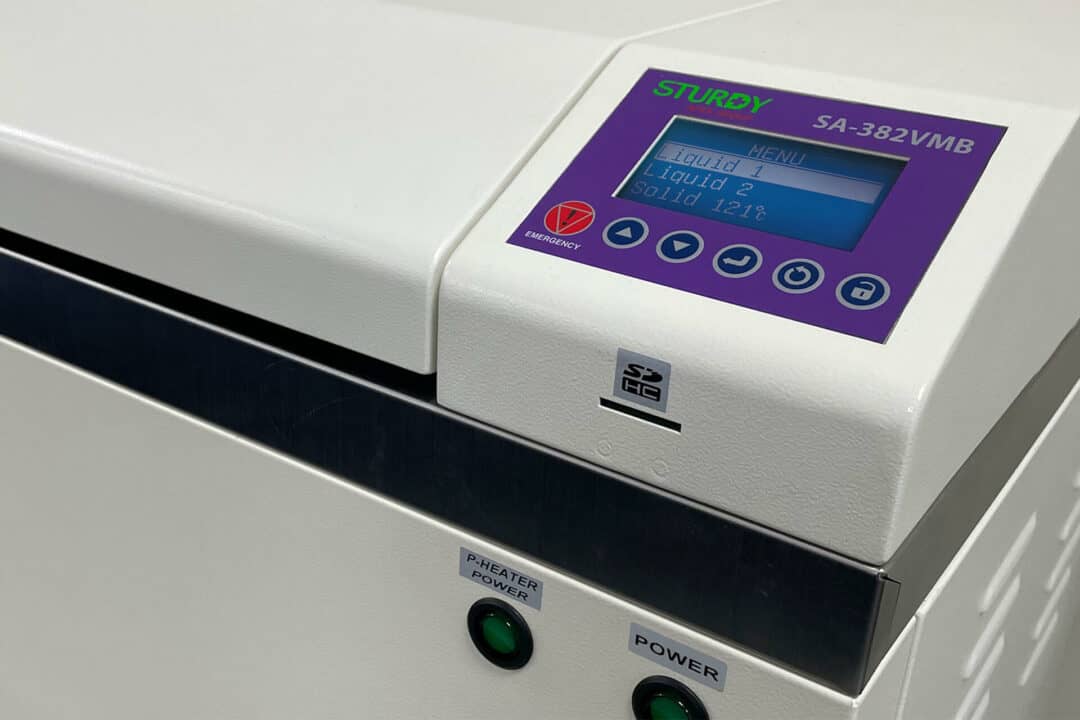

Diversified parameter settings help facilitate the analysis and determination of biological samples. The printing and digital recording of the experimental process can effectively track every detail and transfer the experimental data to the PC through the storage device, which makes data preservation and analysis more convenient and improves the overall work efficiency.

Diversity of programs Take All Sterilization Needs In addition to Liquid, Soild, Agar, and Dissolution program, VMB series has 2 customized programs to set parameters according to the user’s needs, including preset program startup, dissolution temperature and time, sterilization temperature and time, the control of exhaust and cooling system, the temperature and time of heat preservation, and the temperature of unlocking the door. One program can extend nearly dozens of cycles, and all programs are controlled by a microprocessor. Just setting the parameters and “Start”.

High-efficiency Steam Condenser No Steam will be Exhausted to Your Lab The high-efficiency steam condenser and 6-liter water bottle keep the laboratory free of steam. With a water level indicator and full water alarm system, you can focus on sterilization verification.

Dual Door Interlock System Ensure Safety During Sterilization Cycle The VMB has both electronic and mechanical door locks. When the open button is pressed at the end of the sterilization cycle, the system detects the chamber pressure and temperature and unlocks the door. A high level of safety protection is provided to prevent accidents from occurring.

Based on your needs for the laboratory.

• Independent temperature and pressure monitoring
• High-precision PT100 Sensor accurately controls liquid temperature.
• 3 fan motors for fast cooling and reduced waiting time
• Built-in steam generator
• Overheating and Pressure overload protection.
• 3 different types according to your needs
• Agar preparation & Dissolution program
• 82 liter chamber volume

Technical specifications

Standard and directives

• ISO 13485:2016 Quality Management System – Medical Devices
• PED 2014/68/EU Pressure Equipment Directive
• EN/IEC 61010-1 Safety Requirements for measurement control and laboratory use
• EN/IEC 61010-2-040 Safety requirements for sterilizers used to treat medical materials
• EN/IEC 61326-1 for EMC Requirements for electrical software
• RoHS Restriction of Hazardous Substances Directive 2011/65/EU
